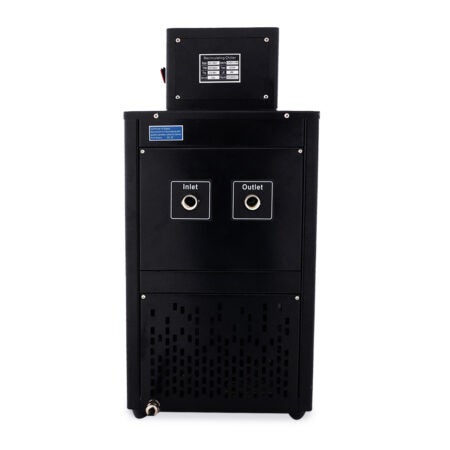

-20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720

-20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720

7L -20°C to 180°C Desktop Recirculating Heater Chiller is a top of the line product compared to others that are currently on the market while maintaining an affordable price. This chiller comes standard with a digital display for ease of use and accurate control. Our compact chiller contains a powerful circulation motor allowing for excellent temperature distribution as well as extremely accurate temperature uniformity.

The compact chiller unit is equipped with a powerful refrigeration system and high-performance heating element, allowing it to rapidly cool or heat up to the set temperature. It is also equipped with precise temperature control, ensuring that the temperature stays within a tight tolerance range.

This UHC-720 is a versatile and reliable choice for temperature control in a wide range of applications.

Not intended for 24-hour operation, maximum operation time is 16 hours.

*Any temperature above 100°C requires the use of Silcone Oil ONLY*

UHC-720 Specifications

Operation Range

-20°C to 100°C (up to 180°C with silicone oil)

Power Requirements

220V -240V 60hz 15.5A – 14.5A  6-20p

Cooling Capacity

+10°C – 450W | 0°C – 350W | -10°C 250W

Controller Accuracy

±2°C

Circulation Type

Open loop with bath cover

Circulation Capacity

Lift: 5.6m/18.3ft. | Flow: 20L/min | PSI: 8

Circulation Wattage

100W

Display Type

LCD Touchscreen with Timer

Temperature Probe Type

PT100

Compressor

Piston style rated for 735W

Refrigerant

R-134a

Heating Element Rating

2500W

Condenser Fans

2X 38W (76W Total)

Tank Capacity

7L SS304

Tank Size WxDxH

11.8″ X 8.7″ X 5.1″

Cooling Exchanger

Chromium Coated Copper

Hose Connection

1/2″ NPT

Overall Size WxDxH

12.6″ X 21.7″ X 27.2″

Overall Weight

35kg | 77lbs.

Packing List

UHC-720

1

1/2″ FNPT Insulated Heater Hose – 6FT

2

1/2″ MNPT Union Fitting

2

Manual

1
