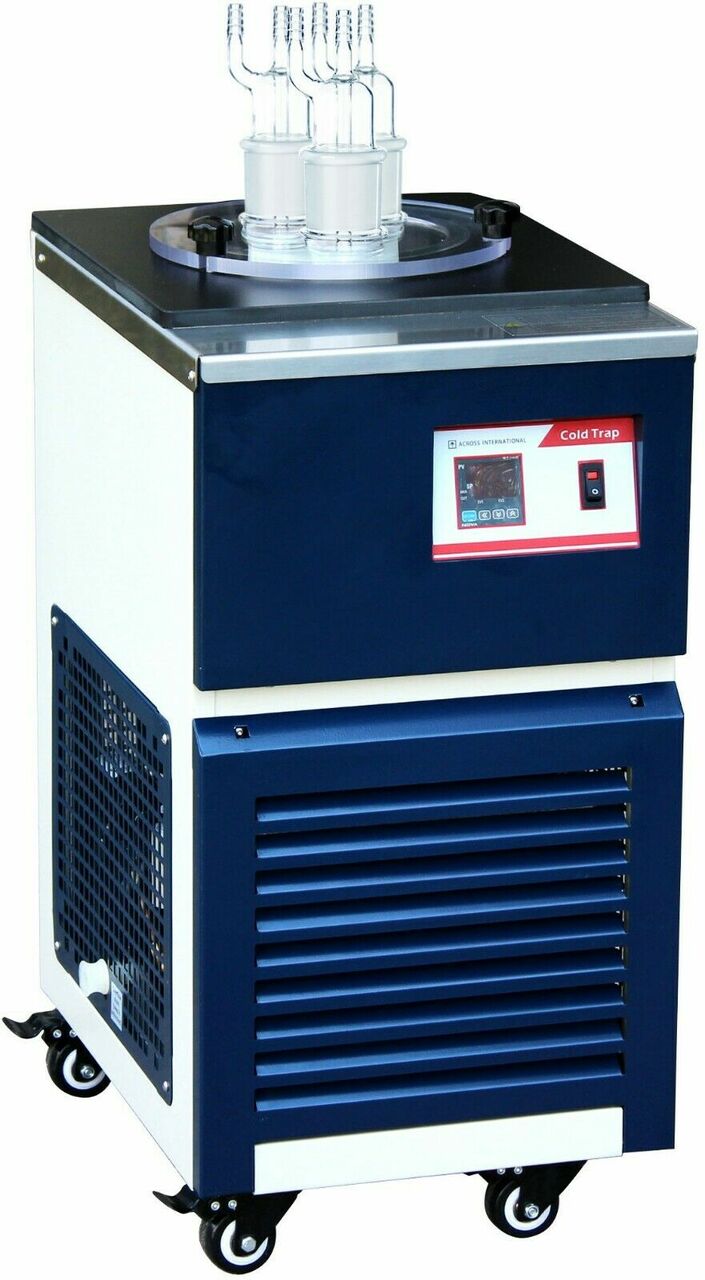

Ai UL/CSA Certified -40°C/F Cold Trap with 500ml x 3 Traps

$3,990.00

Ai UL/CSA Certified -40°C/F Cold Trap with 500ml x 3 Traps



**PLEASE CALL FOR AVALIBILITY, ITEM MAY DROP SHIP**

The Ai 2nd Gen -40°C/F T40 cold traps now all ETL certified. They have a much smaller footprint, but at the same time, offering you the same cooling power, 1.5X reservoir and 1.6X trap capacity. New upward hose barb ports provide you safer and easier vacuum tubing connection and removal.

In vacuum applications, a cold trap is a device that condenses all vapors except the permanent gases into a liquid or solid. The most common objective is to prevent vapors being evacuated from an experiment from entering a vacuum pump where they would condense and contaminate it. Particularly large cold traps are necessary when removing large amounts of liquid as in freeze drying.

Pumps that use oil either as their working fluid (diffusion pumps), or as their lubricant (mechanical rotary pumps), are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the cavity.

Care should be taken when using a cold trap not to condense liquid oxygen (a light blue liquid) into the cold trap. Liquid oxygen is potentially explosive, and this is especially true if the trap has been used to trap solvent. Liquid oxygen can be condensed into a AI cold trap for vacuum pump if a pump has sucked air through the trap when the trap is very cold.

Ai UL/CSA certified T40-UL -40°C/°F cold trap features

ETL tested to UL certified and CSA certified standards
• 1.5X more reservoir and 1.6X more trap capacity compare to its predecessor
• No dry ice or liquid nitrogen needed
• All steel housing for durability
• Small footprint, built-in swivel casters for mobility
• Plug and play, 110-120Volt
SPECIFICATIONS
Model  T40-UL
 Electrical requirements  110V, 60Hz 1-PH
 Compressor  Make: Embraco
 Refrigerant: R404A (220g)
 Cooling capacity:
    @ -10°C: 300W
    @ -20°C: 250W
    @ -30°C: 150W
    @ -40°C: 50W
 Reservoir  Volume
   1.3 gallon (5 liters)
 Dimensions
   Diameter 6 1/4 inches
   Depth: 9 1/2 inches
 Temperature  -40°C (-40°F)
 Display: digital
 Unit: °C
 Sensor: Pt100
 Finish  Exterior: powder coated steel
 Interior: polished type 304 stainless steel
 Trap  Material: high borosilicate glass 3.3
 Volume: 500ml
 Diameter: 2 inches
 Depth: 11 1/2 inches
 Quantity: three
 Vacuum level: lower than 500 Micron
 Vacuum connection  3/8″ hose barb
 Recommended coolant  50% Ethylene glycol + 50% purified water
 Unit/shipping weight  100lbs / 140lbs
 Unit/shipping dimensions  13 x 18 x 26″ / 18 x 23 x 38″ (WxDxH)
 Compliance  UL 471:2010 Ed.10+R:08Dec2016
 CSA C22.2#120 Issued: 2013/03/01 Ed: 4 Refrigeration Equipment
 Warranty  One year

Standard Package

 Part Description

 Quantity

Part Image

Ai T40-UL -40°C/°F cold trap

1 pc

Glass trap with upward connection ports

3 pcs

3/8″ silicone vacuum tubing

10ft

Radiator cleaning brush

1 pc

3/8″ hose barb to KF25 flange adapter

2 pcs

KF25 quick clamp and centering ring

2 sets

User’s manual

1 pc
