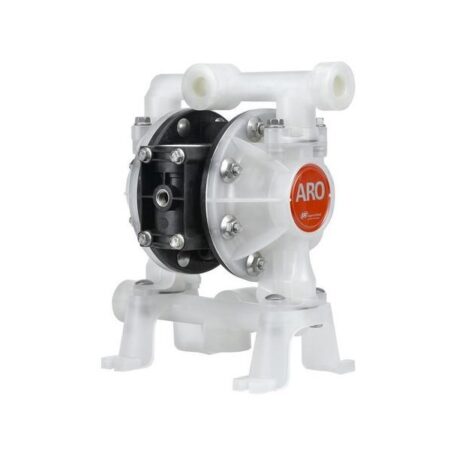

ARO Diaphragm Fluid Transfer Pump, 1/2″ , Air Operated, 14 GPM (Constructed Of Polypropylene & Santoprene)
$1,200.00 – $1,800.00
ARO Diaphragm Fluid Transfer Pump, 1/2″ , Air Operated, 14 GPM (Constructed Of Polypropylene & Santoprene)
** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**
Offering high volume delivery even at low air pressure this ARO® double diaphragm, aro transfer pump features maximized flow rates with minimal pulsation and air consumption. This air-operated, double-diaphragm model utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. This polypropylene pump (and santoprene) can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.
*We recommend an Air Compressor with 8 CFM or more.*
| ARO Specifications | |
| Item | Double Diaphragm Pump |
| Pump Operation Type | Air Operated |
| Max. Flow | 14 gpm |
| Max. Temp – Pumps | 150°F |
| Housing Material – Pumps | Polypropylene |
| Inlet / Outlet Size | 1/2″ |
| Connection Style | NPT |
| Air Inlet Size | 1/4″ FNPT |
| Diaphragm Material – Pumps | Santoprene(R) |
| Agency Compliance | CE, REACH, RoHS |
| Valve Type | Ball |
| Max. Operating Pressure | 100 psi |
| Ball Material | Santoprene(R) |
| Check Seat Material | Polypropylene |
| Max. Dia. Solids | 3/32″ |
| Manifold Connection | Multiport |
| Length | 13.75″ |
| Width | 7.5″ |
| Height | 11.625″ |
| Self-Priming Dry | 10ft |
| Self-Priming Wet | 15ft |
| Manufacturer’s Warranty | 5 years |

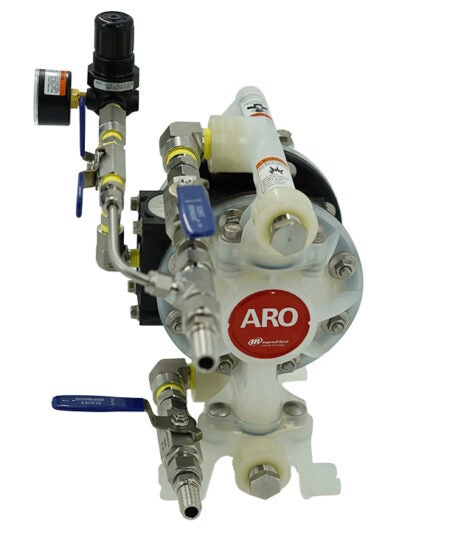

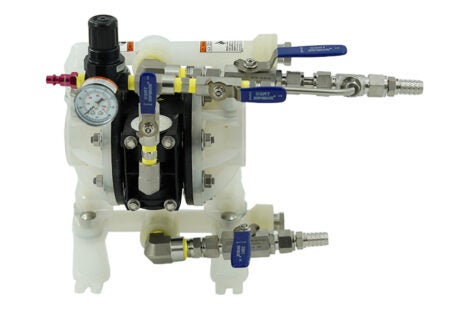

| Packing List for Assembled Pump | |
| ITEM | Quantity |
| ARO 1/2 ” Diaphragm Pump | 1 |
| Superlok Compression 210 Series Ball Valve
-65ºC to 21ºC at 1000PSI [1/2″] |
2 |
| Superlok FNPT 210 Series Ball Valve – 316SS
-53ºC to 21ºC at 1000PSI [1/4″] |
2 |
| FNPT x MNPT x MNPT 3-Way Street Tee [1/4″] | 1 |
| MNPT to FNPT Street Elbow [1/2″ X 1/2″] | 2 |
| MNPT to FNPT Street Elbow [1/4″ X 1/4″] | 1 |
| MNPT x MNPT Hex Nipple Union [1/4″ x 1/4″] | 2 |
| Superlok O.D. Tube X MNPT Connector – SMC [1/4″] | 1 |
| Superlok MNPT Connector X O.D. Tube – SMA [ 1/2″] | 2 |
| Superlok 1/2″ HB X 1/2″ TUBE STUB | 2 |
| Superlok Compression Reducing Tee – SRUT [1/2″” X 1/4″] | 1 |
| Custom Tube Stub – [2″] | 1 |
| NORGREN Regulator – [1/4″] | 1 |
| GRAINGER Pressure Gauge | 1 |
| ColorConnex Connector | 1 |
