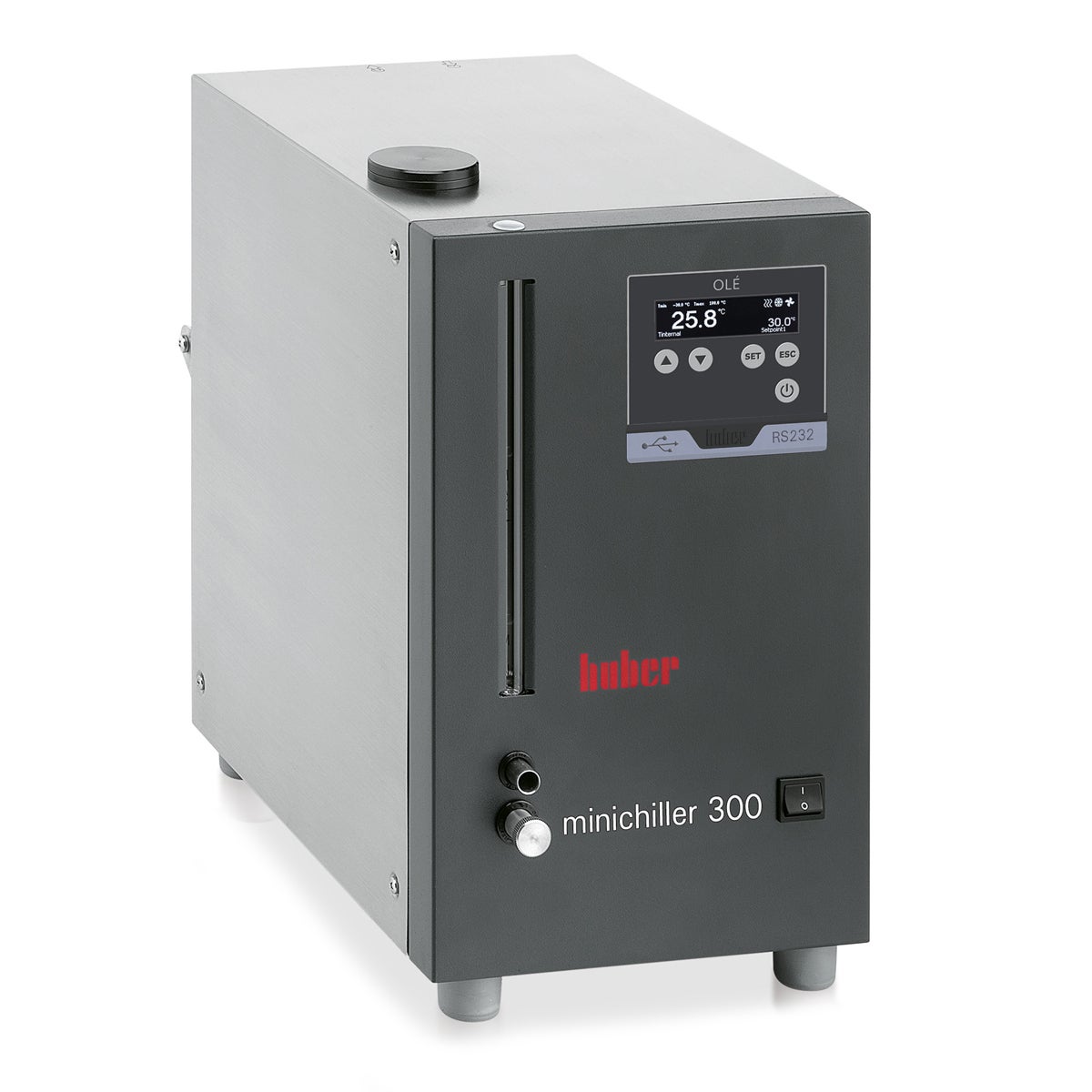

Huber Minichiller 300 OLÉ
Huber Minichiller 300 OLÉ
*Notice: This item is subject to drop ship and may have a extended lead time*
The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.
The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
FEATURES:
Environmentally-friendly, economic cooling solution
High efficiency
Precise temperature control
Simple operation with menu navigation
Robust stainless construction
Reliable continuously operation with warning functions
Easy to fill and empty
Illuminated filling level indicator
Bright, large OLED display
USB and RS232 interfaces
Natural refrigerant
300 OLE Data sheet
CLICK HERE 3 YEAR WARRANTY REGISTER
Please observe the notes on installation and/or the space requirements of our products
| General information & temperature controller | |||||
| Temperature range | -20…40 (80 ) °C | ||||
| Temperature stability | ±0.5 °C | ||||
| Temperature display | OLED Display | ||||
| Display resolution | 0.1 °C | ||||
| Alarm message | optical, acoustical | ||||
| Controller | OLÉ | ||||
| Safety class | I / NFL | ||||
| Protection class | IP20 | ||||
| Dimensions (W x D x H) | 225 x 360 x 380 mm | 8.86 x 14.17 x 14.96 inches | ||||
| Weight | 23 kg | 50.72 pounds | ||||
| Heating / cooling capacity | |||||
| Cooling capacity | 15 | 0 | -10 | -20 | °C |
| 0,3 | 0,2 | 0,14 | 0,07 | kW | |
| Cooling machine | air-cooled | ||||
| Refrigerant (ASHRAE, GHS) | R290 (A3, H220) (0,041 kg) | ||||
| Circulation pump | |||||
| Pressure pump max. | 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi | ||||
| Suction pump max. | 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi | ||||
| Pump connection | M16x1 AG male | ||||
| Connections | |||||
| Digital interface | USB (Device), RS232 interfaces | ||||
| Operating data | |||||
| Permissible ambient temp. | 5…40 °C | ||||
| Noise level | 51 dB(A) | ||||
| Filling volume min. | 1.4 Liters | 0.37 gal | ||||
| Volume of expansion | 2.6 Liters | 0.69 gal | ||||
| Power supply | 110-120V 1~ 60Hz | ||||
| Current max. | 4,5 A | ||||
