    PDX GOLD STAR150 Recovery Pump

    $12,500.00

    Product Enquiry!

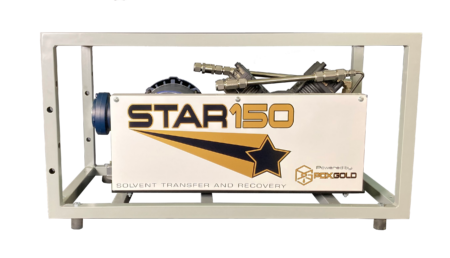

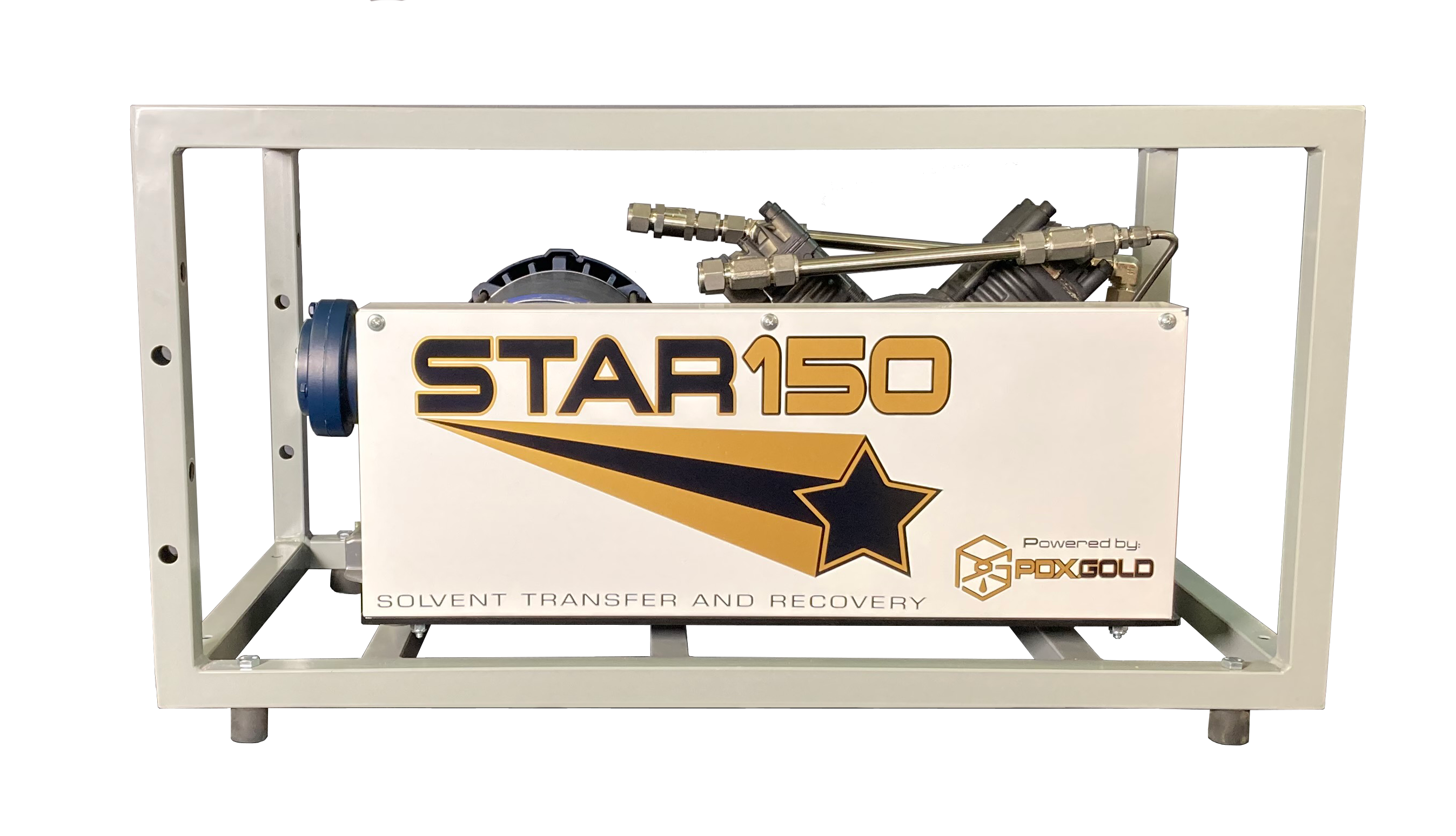

    PDX GOLD STAR 150 Recovery Pump



    The STAR 150 Solvent Transfer And Recovery pump is the latest technology from PDX.Gold and is a potent addition to any processing lab. This powerful system pairs perfectly with the industry’s leading hydrocarbon extraction systems by decreasing your recovery times and increasing your profits instantly!

    Features
    • Certified by 3PCertz, licensed professional engineers
    • Recovers solvent at pressures up to 150 PSI
    • Certified to pressure of 250 PSI
    • Displacement: 6.5 CFM free air flow
    • Oilless compressor prevents lubricant contamination
    • Belt drive – reliable & quiet
    •  Durable and maintenance free with proper operation
    • Piston driven compressor



    Technical Specs
    Certifications UL & CSA listed, NEMA 7, 2 hp
    C1D1 explosion proof motor
    Recovery Rate 2+ lbs /  Minute*
    Power Single phase & 3 phase drive available
    Voltage 1-Phase 115/208-230v & 3-Phase 208/230/460v
    Free Load Amperage 13.4A (115v) / 6.7A (230v) & 3.8A (230v) / 1.9A (460v)
    Max RPM 1750
    Noise data quiet at ~79 dBa
    Inlet / Outlet 1/2: Tube Fittings
    100% food grade materials
