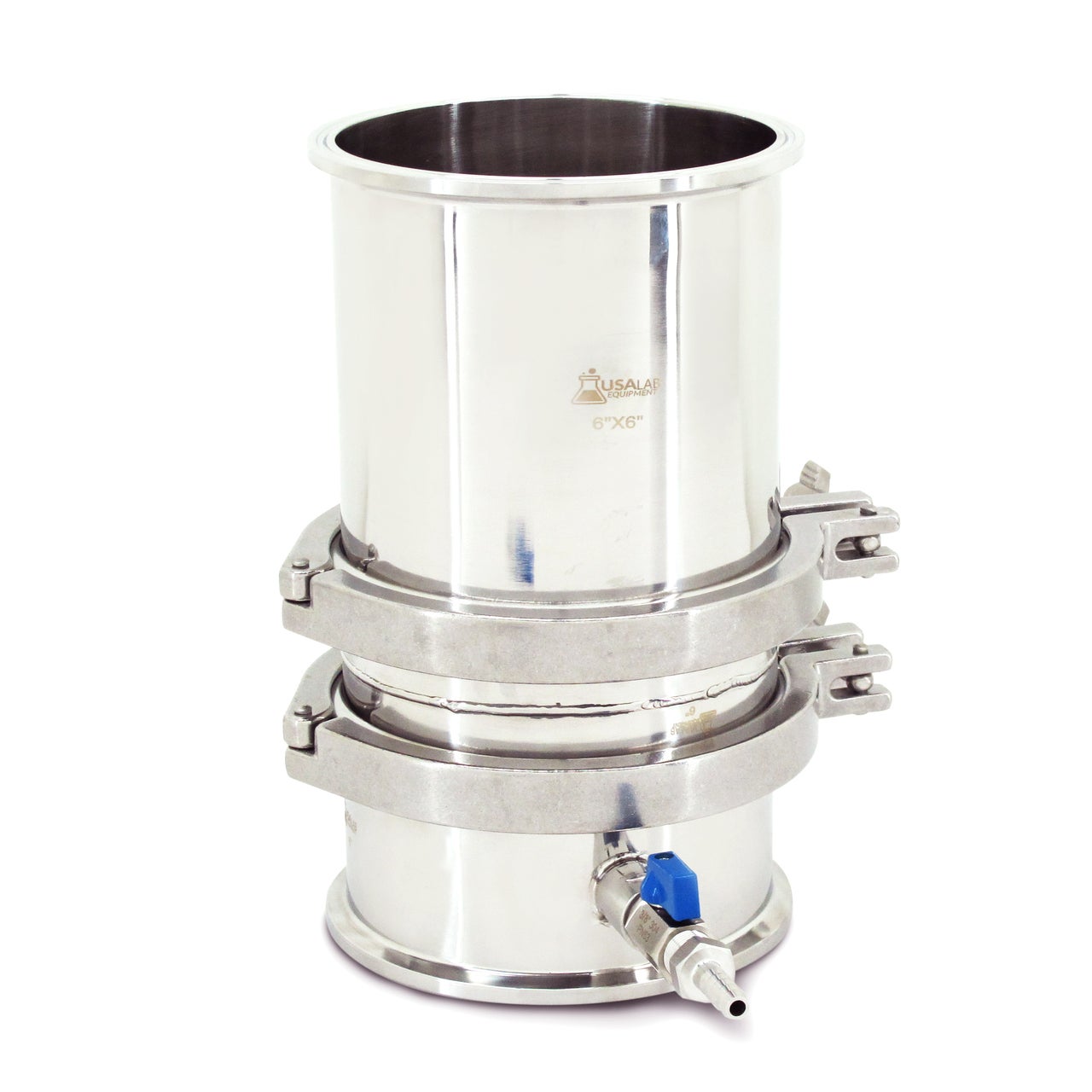

Stainless Steel 6″ in. Buchner Funnel SS 304
Stainless Steel 6″ in. Buchner Funnel SS 304
TRI-CLAMP FITTING SIZES
| Tube Outer Diameter A |
Flange Outer Diameter B |
Tube Inner Diameter C |
| 1.5″ | 1.98″ | 1.37″ |
| 2″ | 2.52″ | 1.87″ |
| 3″ | 3.58″ | 2.87″ |
| 4″ | 4.68″ | 3.83″ |
| 6″ | 6.57″ | 5.78″ |
| 8″ | 8.57″ | 7.78″ |
| 10″ | 10.57″ | 9.73″ |
| 12″ | 12.57″ | 11.81″ |
12″ Diameter Stainless Steel Buchner Funnel is designed to be a durable option for filtering at an affordable price. Don’t break the bank with expensive filters, start filtering today at a fraction of the cost!
| BSSBF12 Specifications | |
| Material | 304 Stainless Steel |
| Capacity | 22.2L |
| Connection Type | Tri-Clamp |
| Mesh Specs | 150 Mesh (100 Micron) |
| Filter Plate Size | 12″ |
| Bottom Connections | 3/8″ FNPT |
| Exterior Dimensions | 17″ L x 15″ W x 17″ H |
| Weight | 51lbs |
| BSSBF6 Packing List | |
| 6″ x 6″ Tri-Clamp Spool | 1pc |
| 6″ Tri-Clamp Filter Plate | 1pc |
| X Filter Ring – 6″ | 1pc |
| 6″ Mesh – 150 Mesh (100 Micron) | 1pc |
| 6″ Standard Pressure Tri-Clamp | 2pcs |
| 6″ Buna Gasket | 2pcs |
| Superlok Ball Valve – 1/2″ FNPT | 1pc |
| 1/2″ MNPT to 1/2″ Barb | 1pc |
| Vacuum Hose | 10ft. |
