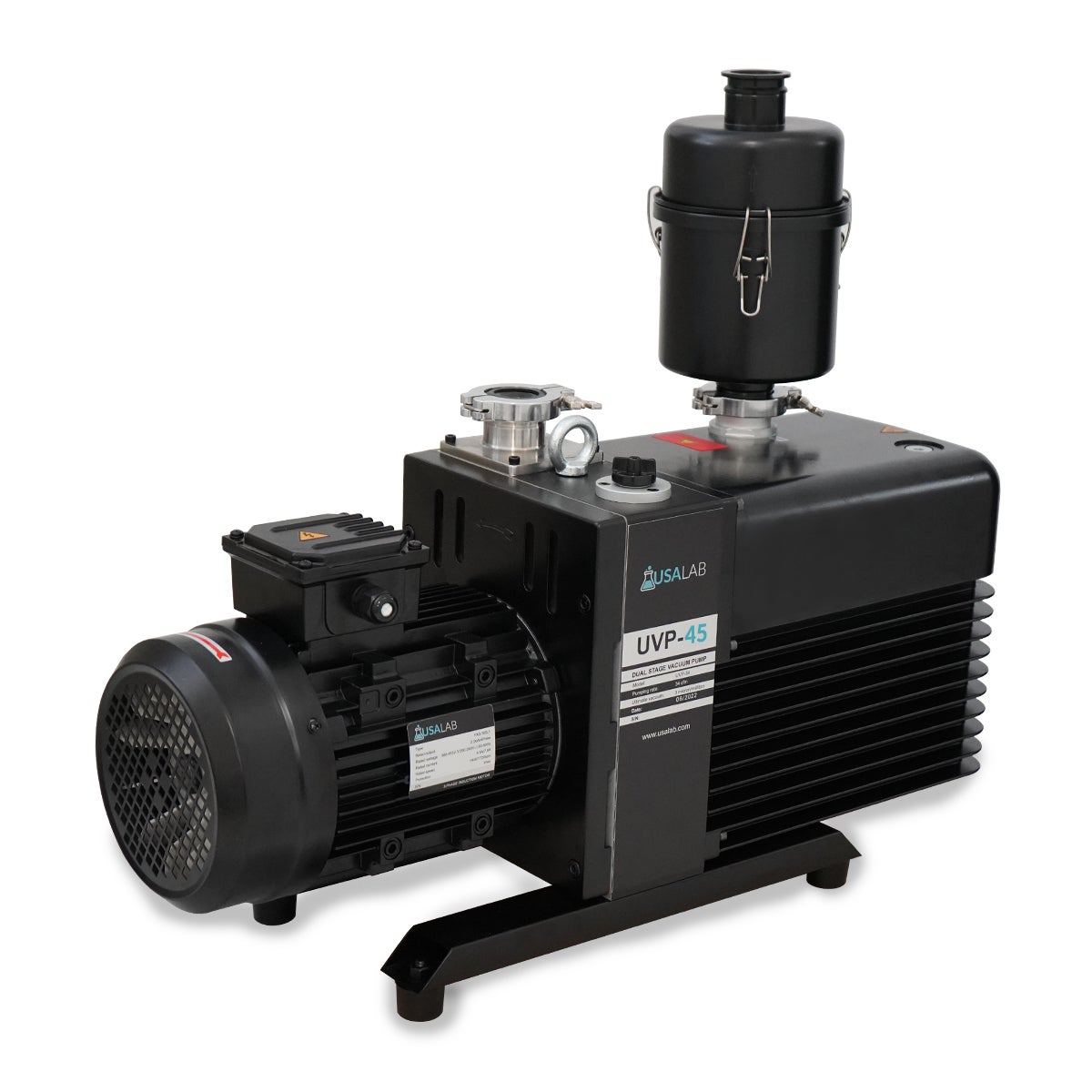

45CFM UVP-45 Corrosion Resistant 2-Stage Vacuum Pump

$5,999.00

45CFM UVP-45 Corrosion Resistant 2-Stage Vacuum Pump

Our new line of corrosion resistant UVP-34 34 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 34 cfm. Each 2-stage vacuum pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-34, or UVP-45 45 CFM vacuum pump are great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.
• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant pump vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.

SPECIFICATIONS

Model

UVP-34

UVP-45

Pumping Speed (60Hz)

34 cfm

45 cfm

Ultimate Total Pressure Gas Ballast Close

4×10-2 Pa

(3.0×10-4 torr) 0.3 Micron

Ultimate Total Pressure Gas Ballast Open

8×10-1 Pa

(6×10-3 torr) 6 Micron

Power Supply

3 Phase (240V, 60Hz)

Power Rating(kW)

1.5

2.2

Inlet/Exhaust Flange

KF40

Oil Capacity (L)

3.3~4.5

Ambient Temperature ()

10~40(℃)

Noise Level (dB)

62

65

Weight (kg)

21

30

External Dimensions

724x241x317MM

750x241x317MM

28.5×9.5×12.5″

29.5×9.5×12.5″

Certification

CE

Warranty

2 Year

PACKING LIST
Model UVP-34 UVP-54
Main Vacuum Pump 1 1
KF40 x 3/8″ Barb 1 1
KF40 Clamp 2 2
KF40 O-Ring 2 2
Oil Mist Trap 1 1
Quart of Oil 1 1
Manual 1 1
