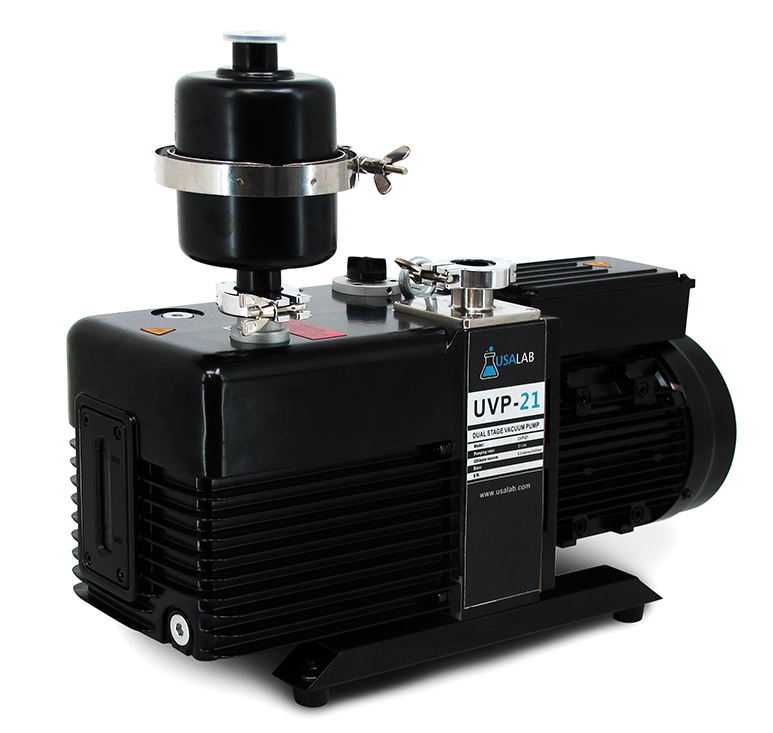

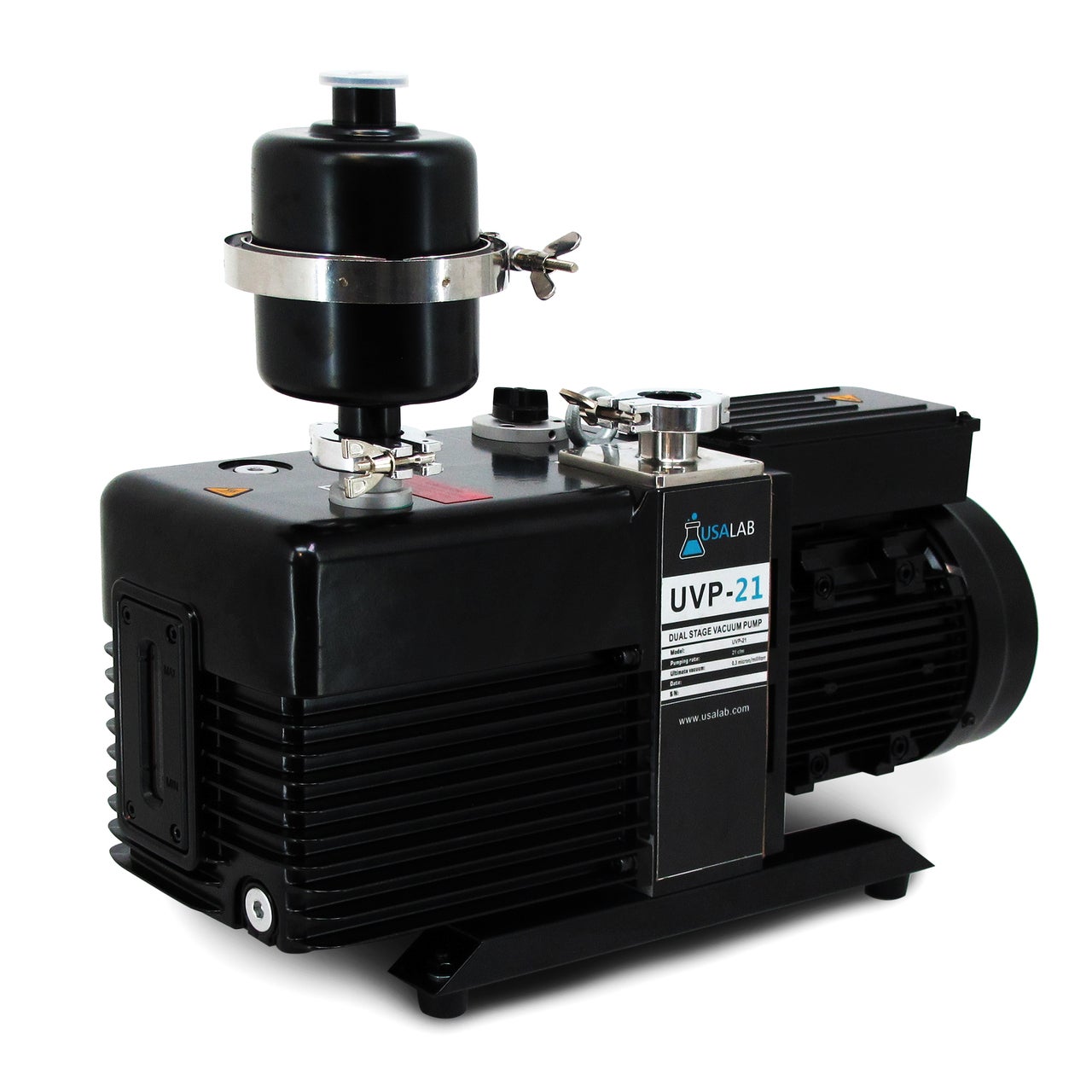

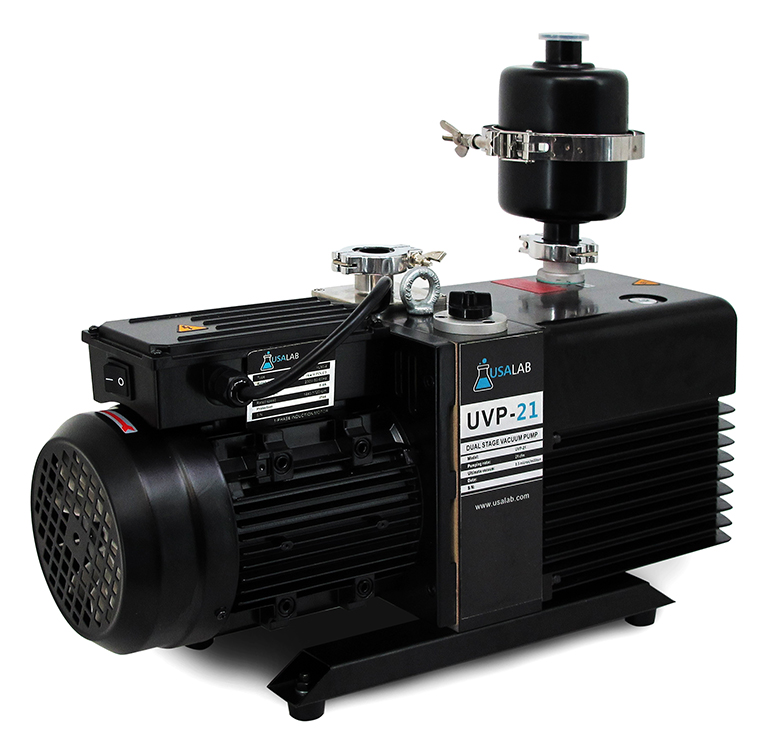

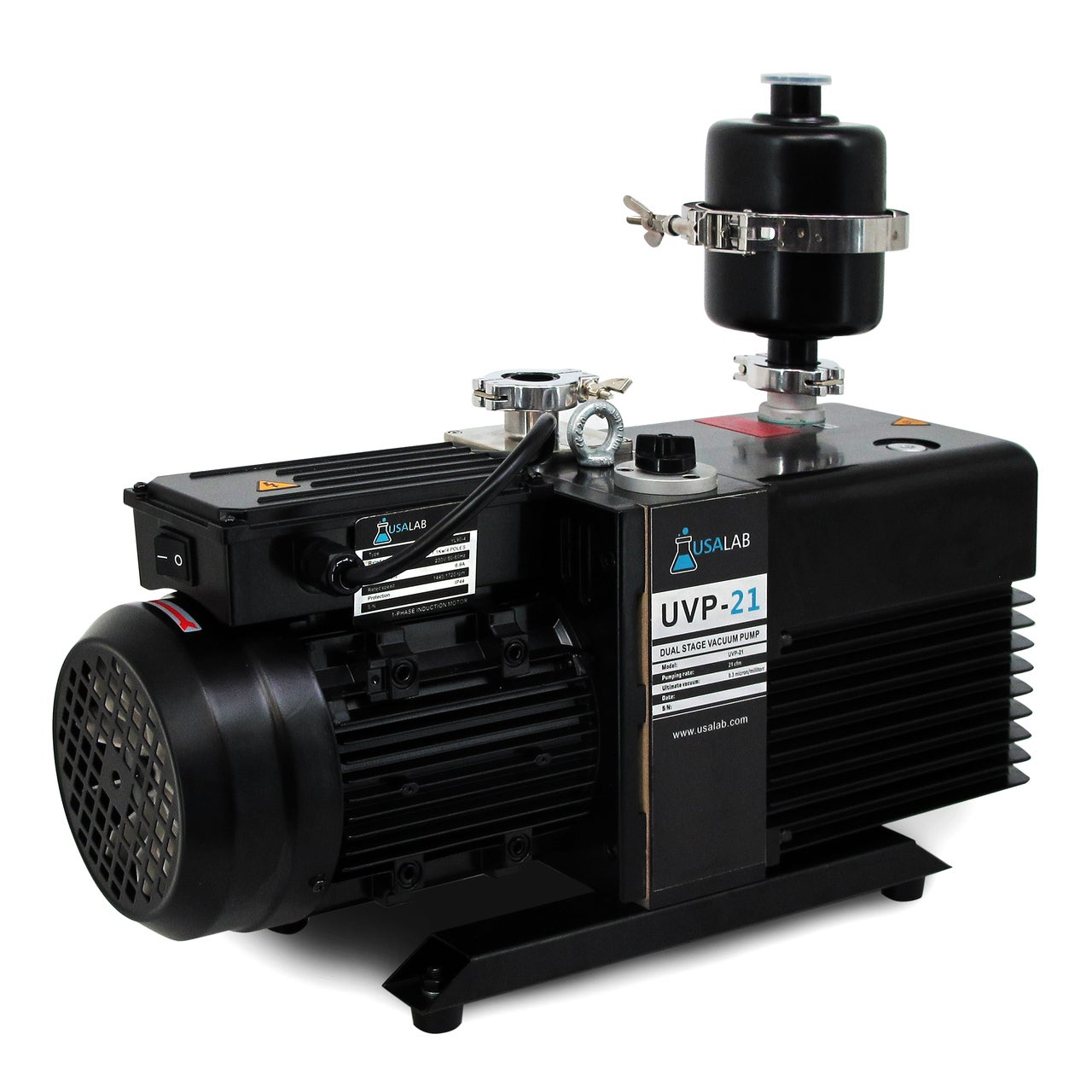

UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump

$3,099.00

Product Enquiry!

Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. This scientific vacuum pump is designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 ul listed pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get this superior corrosion resistant, 2 stage vacuum pump on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.

• Corrosion-resistant vanes for premium reliability.

• Low noise level and noise-dampening rubber feet.

• Internal check-valve, preventing accidental back-flow.

• Easy to change oil mist filter.

• Large oil reservoir.

-REPLACEMENT FILTER HOUSING-

-REPLACEMENT FILTER-

-MANUAL-

SPECIFICATIONS
Model	UVP-5	UVP-11	UVP-21

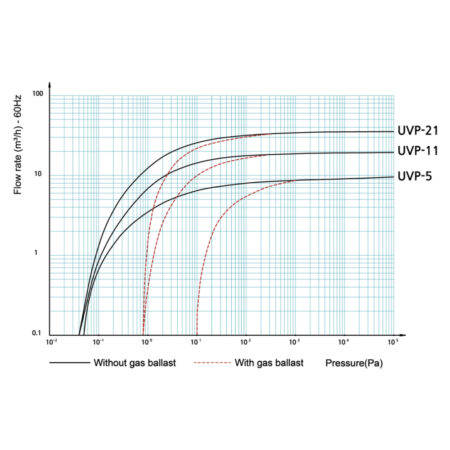

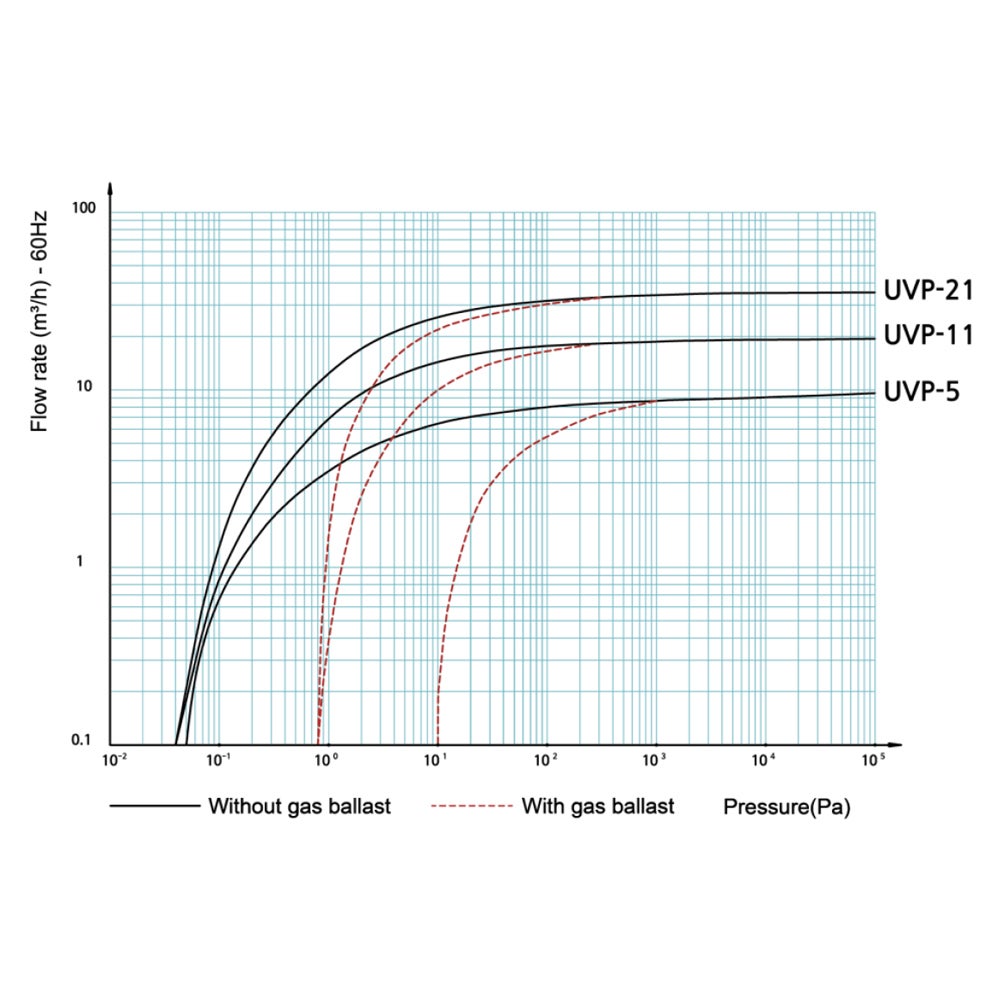

Pumping Speed(60Hz)	5.5 cfm	11 cfm	21 cfm
Ultimate total pressure gas ballast close	4×10-2 Pa (3.0×10-4 torr) 0.3 Micron
Ultimate total pressure gas ballast open	8×10-1 Pa (6×10-3 torr) 6 Micron
Power supply	1 Phase (110V, 60Hz)
Power rating(kW)	0.4	0.75	1.1
Inlet/Exhaust Flange	KF 25
Oil capacity(L)	0.6~1.0	0.9~1.5	1.3~2.0
Ambient temperature(℃)	10~40℃
Noise level(dB)	≤56	≤60	≤60
Weight(kg)	21	30	43

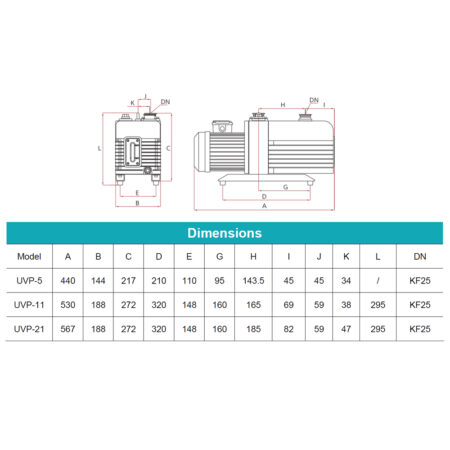

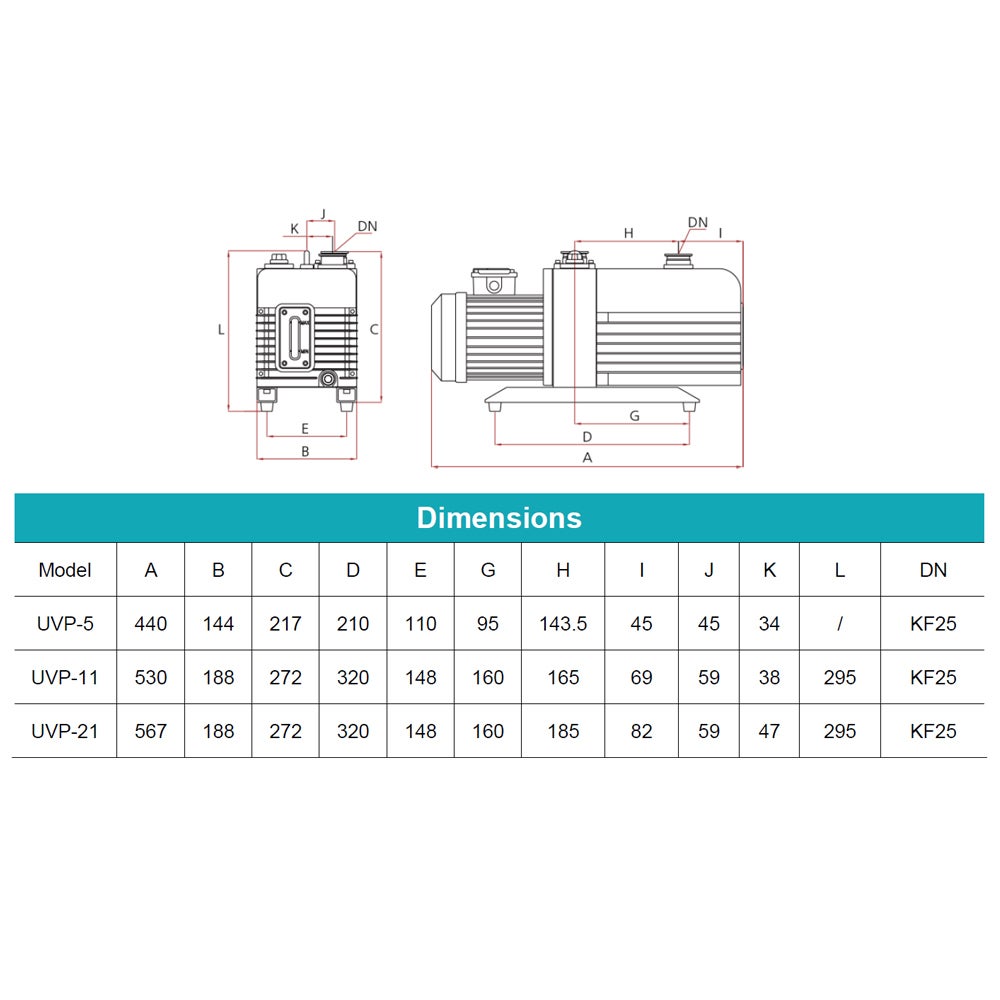

External Dimensions	440x144x217MM 17.3×5.6×8.5″	530x188x272MM 20.8×7.4×10.7″	567x188x272MM 22.3×7.4×10.7″
Certification	UL
Warranty	2 Year

PACKING LIST
Model	UVP-5	UVP-11	UVP-21
Main Vacuum Pump	1	1	1
KF25 x 3/8″ Barb	1	1	1
KF25 Clamp	2	2	2
KF25 O-ring	2	2	2
Oil Mist Trap	1	1	1
Quart of Oil	1	1	1
Manual	1	1	1
