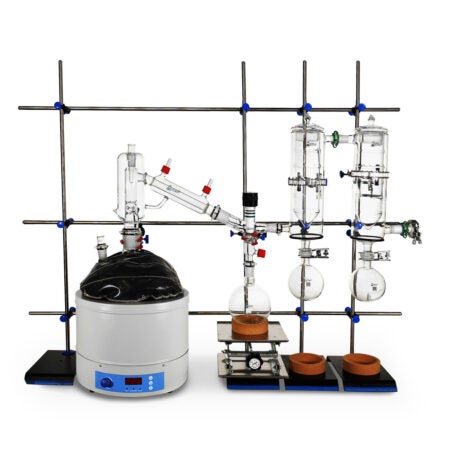

5L Full Bore Short Path Distillation Kit
$3,669.00
5L Full Bore Short Path Distillation Kit
Our 5L Full Bore Short Path Distillation Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation, high production, and consistent results.
This distillation kit comes with a large 34/45 distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, two 24/40 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.
Choose the best quality at the best value with this lattice supported high quality glass distillation kit.
| SPECIFICATIONS | ||||
| Capacity | 2L | 5L | 12L | 22L |
| Dimension | Φ270x220mm | Φ330x220mm | Φ400x300mm | Φ450x330mm |
| Φ10.62×8.66inch | Φ12.99×8.66inch | Φ15.74X11.81inch | Φ17.71×12.99 | |
| Jacket Heater | 110-120V, 350W | 110-120V, 600W | 220-240V, 1000W | 220-240V, 1400W |
| Mantle Heater | 110-120V, 450W | 110-120V, 800W | 220-240V, 1400W | 220-240V, 1600W |
| Motor | 10W | 10W | 60W | 60W |
| Net Weight | 10 kg / 22.04 lbs | 13 kg / 28.66 lbs | 22 kg / 48.50 lbs | 30 kg / 66.13 lbs |
| Max Temp | 300°C | 300°C | 300°C | 300°C |
| Max RPM | 3000RPM | 3000RPM | 3000RPM | 3000RPM |
| PACKING LIST | ||||
| Capacity | 2L | 5L | 12L | 22L |
| Mantle | 1 | 1 | 1 | 1 |
| Top | 1 | 1 | 1 | 1 |
| Probe | 1 | 1 | 1 | 1 |
| Stir Bar | 1 | 1 | 1 | 1 |
| Manual | 1 | 1 | 1 | 1 |
