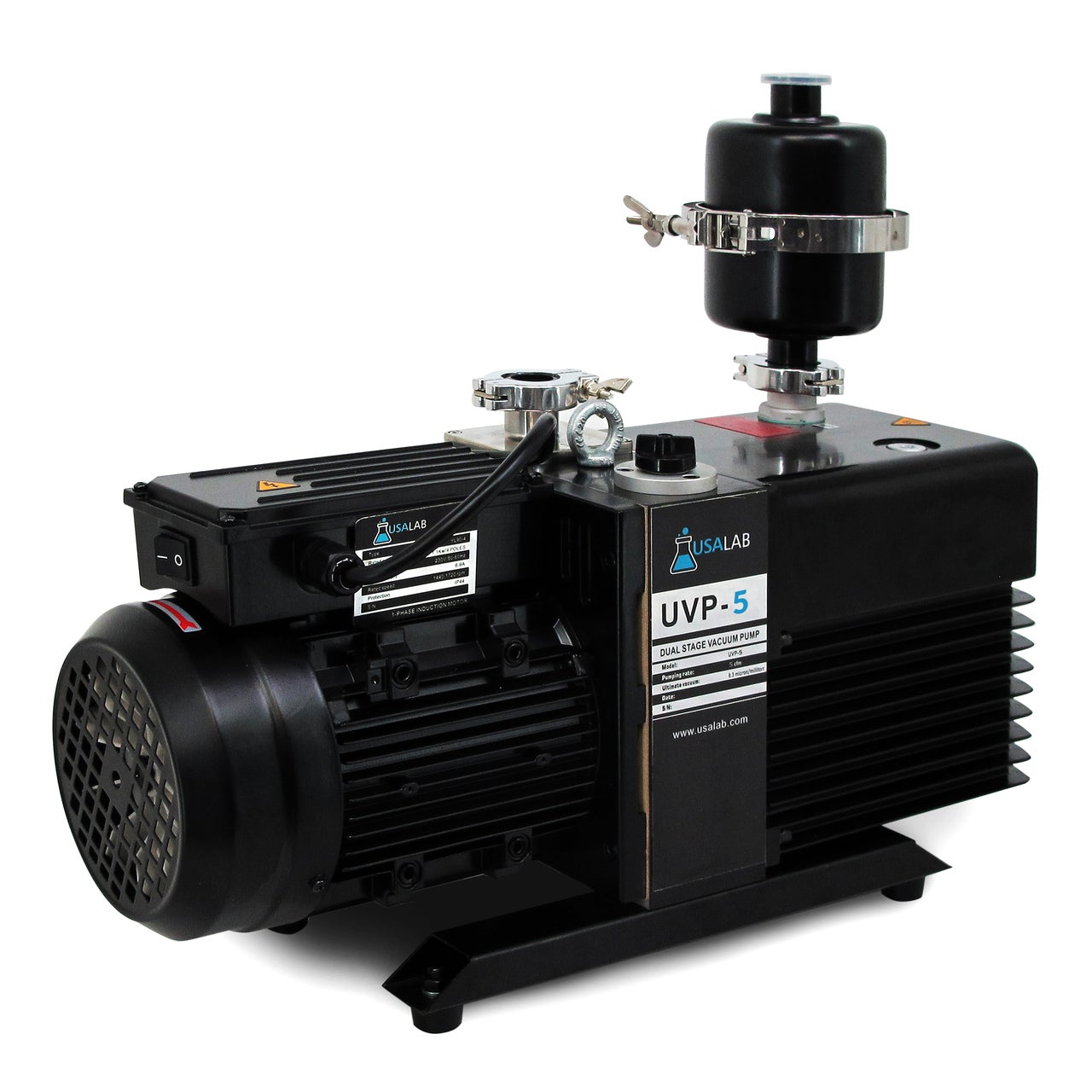

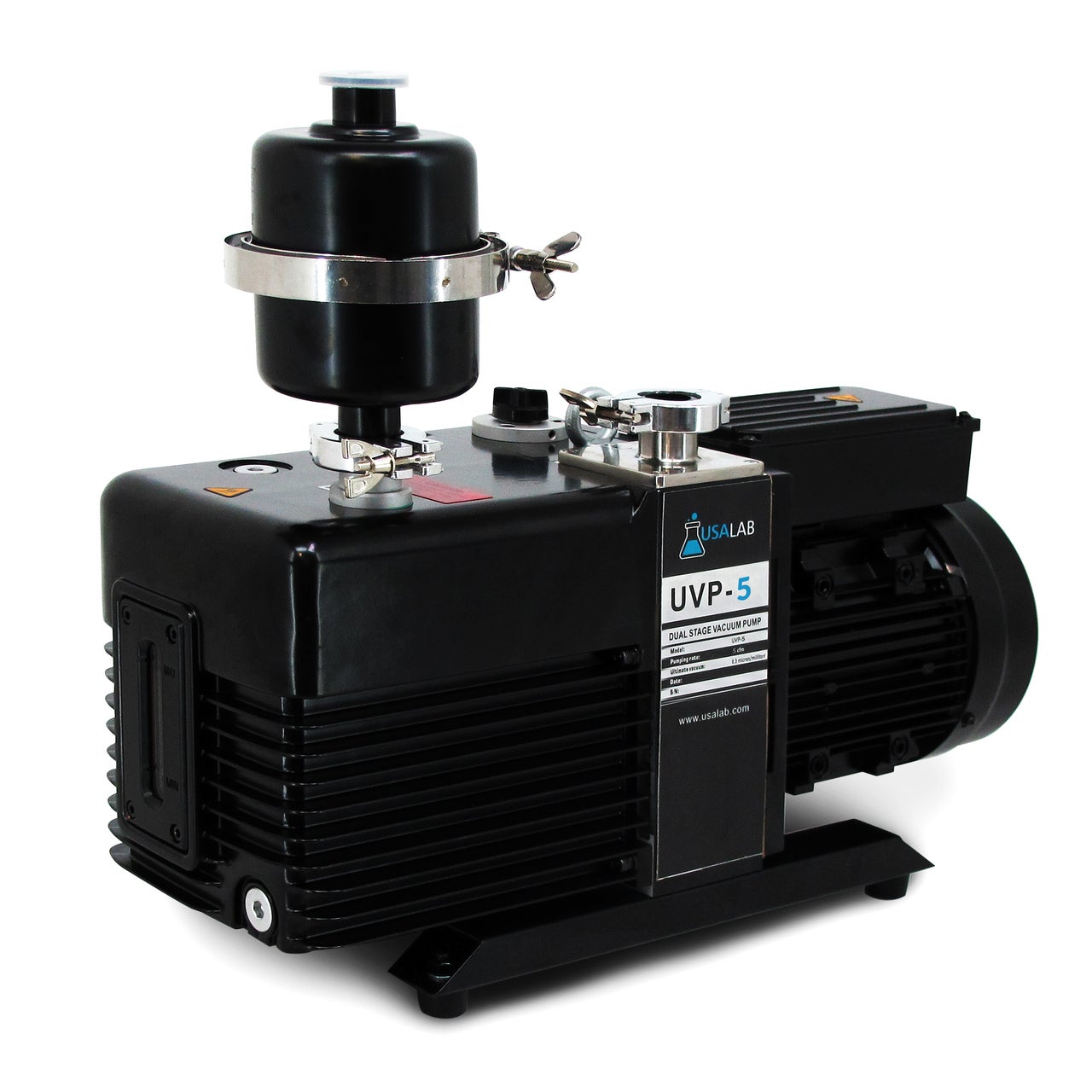

UL Listed 5.6CFM UVP-5 Corrosion Resistant 2-Stage Vacuum Pump
$1,549.00
Our new line of Corrosion Resistant UVP-5 Vacuum Pump 5 cfm provides superior quality that compliment multiple applications. This UL listed pump is designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 5 cfm. Each pump comes standard with an exhaust Oil Mist Filter and all parts needed to connect to any system for immediate use. Our UVP-5 Pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.
• Allows users to control the gas ballast for multiple vacuum levels
• Corrosion-resistant vanes for premium reliability
• Low noise level and noise-dampening rubber feet
• Internal check-valve, preventing accidental back-flow
• Easy to change oil mist filter
• Large oil reservoir
SPECIFICATIONSModelUVP-5UVP-11UVP-21Pumping Speed (60Hz)5.5 cfm11 cfm21 cfmUltimate Total Pressure Gas Ballast Close4×10-2 Pa
(3.0×10-4 torr) 0.3 MicronUltimate Total Pressure Gas Ballast Open8×10-1 Pa
(6×10-3 torr) 6 MicronPower Supply1 Phase (110V, 60Hz)Power Rating(kW)0.40.751.1Inlet/Exhaust FlangeKF 25Oil Capacity (L)0.6~1.00.9~1.51.3~2.0Ambient Temperature (℃)10~40℃Noise Level (dB)≤56≤60≤60Weight (kg)213043External Dimensions440x144x217MM
17.3×5.6×8.5″530x188x272MM
20.8×7.4×10.7″567x188x272MM
22.3×7.4×10.7″CertificationULWarranty2 Year    PACKING LISTModelUVP-5UVP-11UVP-21Main Vacuum Pump111KF25 x 3/8″ Barb111KF25 Clamp222KF25 O-Ring222Oil Mist Trap111Quart of Oil111Manual111
