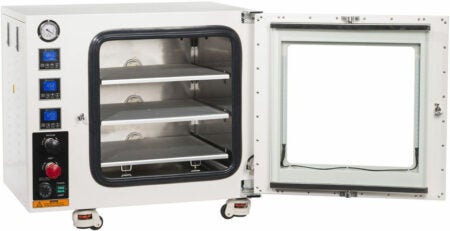

Ai UL/CSA Certified 3.2 CF 480ºF Vacuum Oven w/ 3 Shelves, 5 Sided Heat & SST Tubing – 110V, 220V
Ai UL/CSA Certified 3.2 CF 480ºF Vacuum Oven w/ 3 Shelves, 5 Sided Heat & SST Tubing – 110V, 220V
**PLEASE CALL FOR AVALIBILITY, ITEM MAY DROP SHIP**
SST (stainless steel) tubing refers to internal tubing and compression. External tubing not included.
Introducing the new UL certified 3.2. cu ft vacuum oven, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in this Across International oven has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Our high vacuum oven goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Vacuum oven specifications
| Electric | 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
| Heater | 500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating. |
| Chamber | Size: 18 x 18 x 18″ Material: Stainless steel Capacity: 3.2 cubic feet |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (or 480°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes Warm-up time to 480°F: 60 minutes |
| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately |
| Weight | Unit: 260lbs, shipping: 400lbs |
| Dimensions (WxDxH) | Unit: 30.5 x 24 x 29″ Shipping: 36 x 33 x 35″ |
| Shelves | Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25″ (WxD) each Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25″ (WxDxH) Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2 Distance between shelves (without stackable shelves): 4.75 inches Distance between shelves (with 3 stackable shelves): 2.25 inches Max. load capacity per shelf: 20lbs |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2″ tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED |
| Warranty | 2 years |
| Compliance | UL (E482564), CE |
| Download | Product brochure |
