FYRA Wide Range Vacuum Controller | Capacitive Piezo Sensor + SS DINAMO Valve, Proportional Bleed & Throttle Control, 0.01 to 1000 Torr, Gas Independent

FYRA Wide Range Vacuum Controller | Capacitive Piezo Sensor + SS DINAMO Valve, Proportional Bleed & Throttle Control, 0.01 to 1000 Torr, Gas Independent

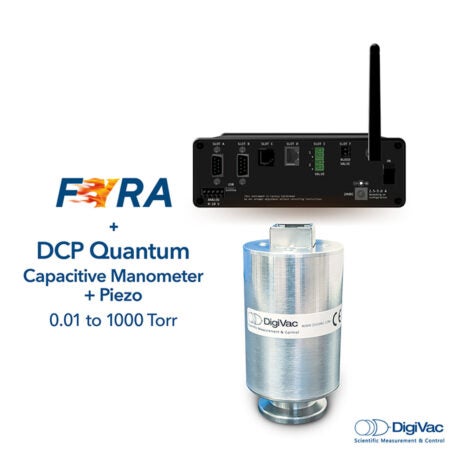

FYRA Wide Range Vacuum Controller (.01 to 1000 Torr, gas independent) paired with the SS DINAMO Valve for precise bleed & throttle control.


FYRA Vacuum Gauge Controller – DigiVac’s Latest Innovation

The DigiVac FYRA Wide Range Vacuum Controller is a digital vacuum control instrument that is highly configurable and capable of driving multiple types of sensors (piezo, thermal, active, passive, and capacitance manometers). It employs a 3.9” capacitive touch screen and includes a tactile knob to easily interact with the vacuum gauge functions. FYRA can intuitively display and manage multiple sensors and control points. Vacuum Science Simplified

DCP Quantum Sensor

The Digivac DCP Quantum DuoSENS: Capacitive Piezo Vacuum Sensor for Highly Accurate Process Control Delivered Simply.

5 decades of gas independent vacuum measurement 0.01 Torr to 1000 Torr

Sensor Details

  • Wide range highly accurate vacuum measurement across 5 decades of vacuum, 1000Torr – 0.01 Torr (+/- 3%)
  • Reliable solid-state relay for process control
  • Integrated baffle to protect internal sensor from particulate contamination to help extend the life of
    the sensor
  • LED Color Pressure Indicator with over pressure notification
  • Gas independent measurement
  • Automatic zeroing of piezo sensor

This DuoSENS capacitive piezo vacuum sensor represents a “quantum” leap in simplicity and usability for processing and distillation applications. Instead of using a rough sensor and a traditional narrow range capacitance manometer, the Quantum DCP DuoSENS allows you to do all that direct pressure measurement in a small environmentally-friendly, low-power package.

Dinamo Valve- SS

Patent-Pending DUAL VALVE DESIGN | Dinamo | Ideal for High Volume Processing

  • Manufactured and Designed by DigiVac
  • Twice the Control | Fine proportional control and bleed control to vent to atmosphere all in one valve
  • Pipe in Dry Gas for Clean Venting
  • The Dinamo valve delivers precise vacuum control and ability to pump down large vacuum chambers very quickly


  • Innovative Valve Design with High Flow and Fine Control
  • Regulate Chambers from 1 to over 100 Liters
  • Low Power Consumption
  • Calibrated under actual vacuum against a NIST standard (NIST certification with documentation is an available option)


  • Maximum Throughput
  • Faster Pump Down
  • Control at Deeper Vacuum Pressures

Example of a FYRA Application

Ideal for pumping down and controlling vacuum systems where you need wide range gas independent vacuum measurement that is precise. Pairing the FYRA with the DCP and stainless steel Dinamo valve delivers a measurement range of .01 to 1000 Torr and a control range of .1 Torr to atmosphere. Easily control larger chambers with proportional bleed and throttle control in one. This application helps make research and processing simpler.

Dinamo Valve
The pressure can be maintained by the DigiVac Dinamo Valve. (Slot B)

DCP Quantum

0.01 Torr to 1000 Torr capacitance manometer would be the sensor to
be used for the control of vacuum pressure. (Slot D)



Data Sheet

DV Cup Cheat Sheet

Quick Start | Distillation


FYRA Wide Range Vacuum Controller Digivac


Technical Specifications
Units Torr, mbar, kPa, microns, millitorr, mmHg, Hectopascal
Control Range Ability to support 10-10 Torr – 1000 Torr
Dimensions 6.5″x6.5″x2.5″
Telemetry Options USB, Wifi, 0-10 volts Analog out, 0-10 volts Analog in
Sensor Support MKS Convectron: 275071 (1/8″ NPT), 275203 (KF16);   DigiVac: SEN-VGT500, SEN-775i, Quantum (SEN-DPP, SEN-DCP, SEN-DPCP);  Pfeiffer: PKR251, IKR251;   Agilent: FRG700, PCG-750, PCG700, 531, 536, 531 equivalent, or PVG 500;   Setra: 730 capacitance manometers;   Inficon: PSG500, PSG550, Porter, SKY, Stripe, MAG, MPG & MPG400
Valve Support Dinamo, VacStable (Bleed), Solenoid-type Bellows and Plunger, 24V valves that are less than 24 Watts
