Cascade CVO-10 Vacuum Oven – Optional Packages

$19,997.00$38,642.00

Clear

Cascade CVO-10 Vacuum Oven – Optional Packages

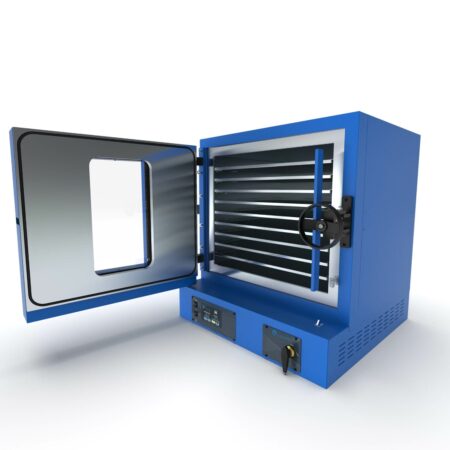

Cascade CVO-10

Cascade CVO-10 Vacuum Oven Packages

This NRTL certified, high production, large vacuum drying system for vacuum purging production quantities, the Cascade CVO-10 is our largest 10 cubic foot vacuum oven.

The CVO-10 offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries – especially temperature sensitive material. This Cascade vacuum oven will liberate solvents, water or other unwanted compounds in large batch production environments.

These Cascade Sciences packages come complete with the Agilent IDP15 9cfm Oil-Free Scroll Pump and an industrial grade mobile rack.



Package Details

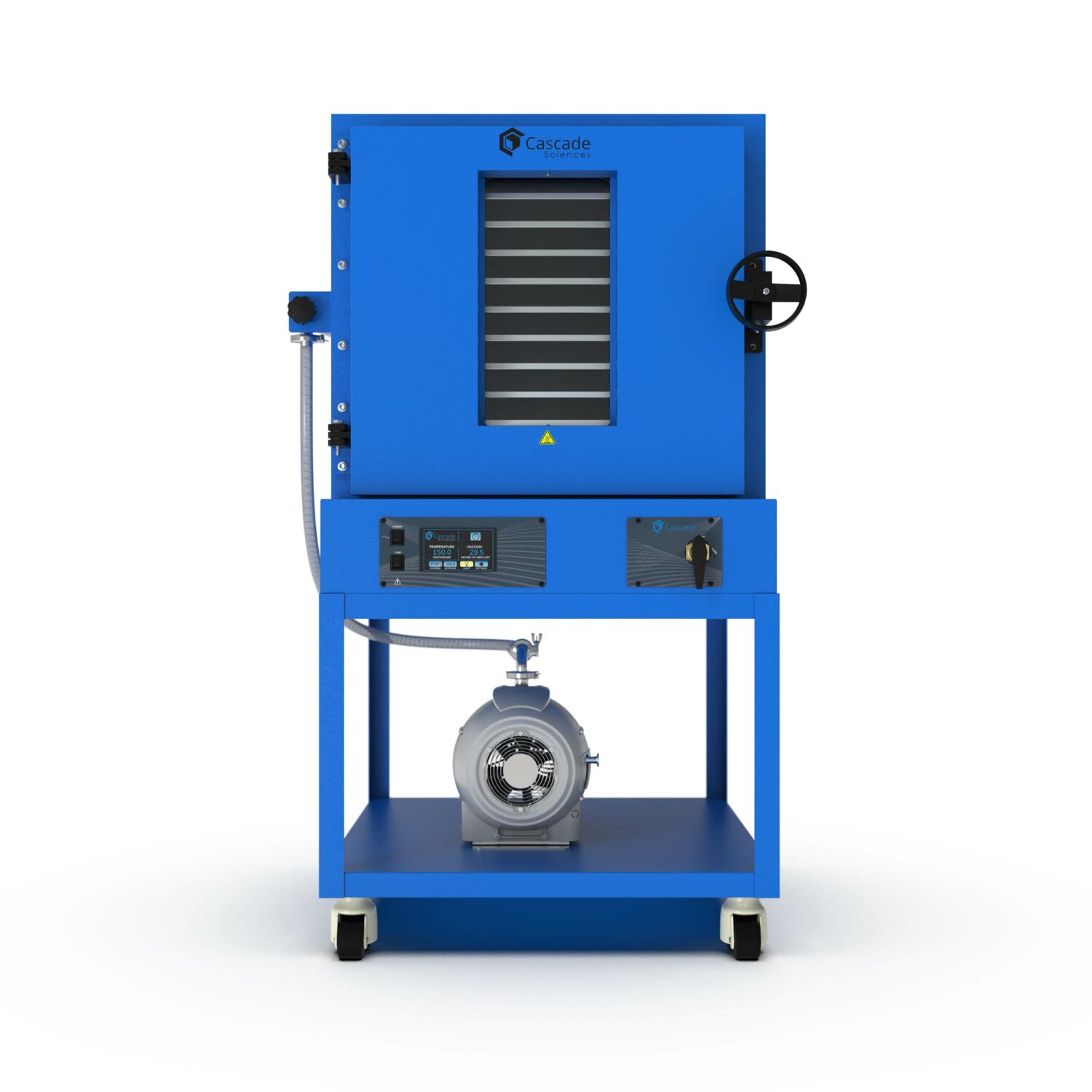

CVO-10 PRO Package
Includes
– Cascade Sciences CVO-10 Vacuum Oven
– Heavy-Duty Industrial Mobile Cart
– 9 Shelves
– MAXEVAP Connection Kit
– Agilent IDP15 Oil-Free Vacuum Pump, 9cfm

CVO-10 PRO Package with MAXTRAP50
Includes
– Cascade Sciences CVO-10 Vacuum Oven
– Heavy-Duty Industrial Mobile Cart for CVO-10 and MAXTRAP50 Cold Trap
– 9 Shelves, Aluminum, full extension with copper sheaths for optimal temperature performance
– MAXEVAP Connection Kit
– MAXTRAP50 Vacuum Cold Trap (-50°C)
– Agilent IDP15 Oil-Free Vacuum Pump, 9cfm

CVO-10 PRO Package with MAXTRAP105
Includes
– Cascade Sciences CVO-10 Vacuum Oven
– Heavy-Duty Industrial Mobile Cart for CVO-10 and MAXTRAP105 Cold Trap
– 9 Shelves, Aluminum, full extension with copper sheaths for optimal temperature performance
– MAXEVAP Connection Kit
– MAXTRAP105 Vacuum Cold Trap (-105°C)
– Agilent IDP15 Oil-Free Vacuum Pump, 9cfm



CVO-10 Vacuum Oven Features


  • NRTL Certified by TUV
  • Stable temperature control. Touchscreen temperature readout with temp sensor INSIDE the oven
  • VITON door gasket
  • Bright LED lights in window for visibility of sensitive material
  • Digital vacuum gauge reads in inches of mercury or torr
  • Smooth, quarter-turn vent valve
  • Rear KF-25 port includes MAXEVAP Connection Kit for rapid vacuum drying or running feedthroughs inside oven for monitoring
  • 220V / 1ph  / 10AMPS  NEMA 6-15R Plug
  • Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007 156CFR/201 11  SGCC -2577 ½ UA
  • Fast venting with larger ½” diameter vent line also allows for nitrogen or other inert gas connection
  • Touch Panel LED control screen with user settable features, easy updates
  • Mobile cart on heavy duty casters

Agilent IDP15 Oil-Free Scroll Pump Features


  • 9 CFM pumping speed
  • Quiet.  Less noisy that diaphragm or oil-rotary vane pumps
  • No Inlet / Exhaust Filters Required
  • Hour Meter For Tracking Service Intervals
  • 1 Year Warranty
  • NRTL Certified /Made in USA
  • Expert Rebuild/Maintenance Available
  • Maintenance is the replacement of a single interior tip seal. Order our IDP15 Tip Seal Replacement Kit or ask us about our maintenance service.
  • Pull Deeper Vacuum / Better Vapor Tolerance With Gas Ballast Positions. The IDP15 has two gas ballast ports that assist the pump in handling condensing gases such as water vapor, or other gaseous products that become liquids or solvents when reaching atmospheric pressure.

MAXTRAP -50°C/-105°C Cold Trap Features


  • Cascade’s COLDWELL 304 Stainless Steel Trap
  • 3 Quart Capacity
  • Viton Gasket
  • Labconco -50°C/-105°C Refrigerated Base
  • Green CFC / HFC Free Refrigerants
  • KF-25 Inlet/Outlet, Connection Line & Hardware
  • 3mm Neoprene Insulator Cap
  • Requires 800ml (~ 3.5 cups) of a transfer fluid such as ethanol. Not Included.
  • Quality Made in USA
  • NRTL Certified
  • Compliance

NRTL Certification #U8 170464972 077. No Extra cost.

The CVO-10 Vacuum Oven comes certified by the Nationally Recognized Test Lab, TUV. This certification is a requirement by many municipalities.

  • CAN/CSA-C22.2 No. 61010-1:2012
  • +UPD No. 1:2015-07 + UPD No. 2:2016-04
  • CAN/CSA-C22.2 No. 61010-2-010:2015
  • UL 61010-1:2012/R:2016-04
  • UL 61010-2-010:2015
  • EN 61010-1:2010
  • EN 61010-2-010:2014

Rigorous Quality Assurance in an ISO Certified, USA Manufacturing Facility

We are proud of our ISO 9001 Certification/Accreditation. Each oven completes a series of quality assurance procedures before shipment.

  • Chambers are vacuum tested after welding for vacuum integrity
  • Electrical & mechanical safety is thoroughly tested in compliance with TUV requirements
  • Functional testing verifies user settable items consistent with most lab protocols/usage models
  • Temperature verification includes calibration & temp chamber uniformity following ASTM standards
  • Units are cleaned and packed in ISTA tested, certified packaging materials
Specification
Model CVO-10 Vacuum Oven
Volume 9.3 Cubic Ft. (263 Liters)
Shelves 9 total (max), removable<br>Full-extension, stay in place<br>Integrated copper strips for temperature transfer<br>Surface area: 28″W x 24″D<br>Weight Capacity Per Shelf: 50 lb / 22.7 kg<br>Volume per shelf: Approx 930 cubic inches
Oven Interior 28”W x 24”D x 24”H (711mm x 609mm x 609mm)
Oven Exterior (not including rack) 42” W x 40” D x 67.4”H (1067mm x 1021mm x 1712mm)
Weight Shipping: 775 lb/ 352 kg<br>Net Weight: 663.0 lb/ 301 kg
Temperature Range Ambient +26° to 302°F / Ambient +15° to 150°C
Temperature Uniformity
@ 105°F +/- 0.2°F – ±2.0°F
@ 200°F +/- 0.4°F – ±5.5°F
@ 300°F +/- 0.2°F – ±8.0°F
@ 40°C +/- 2°C – ±1.0°C
@ 90°C +/- 3°C – ±3.0°C
@ 150°C +/- 4.5°C – ±4.5°C
Temperature Stability
@ 105°F +/- 0.2°F – ±0.2°F
@ 200°F +/- 0.4°F – ±0.4°F
@ 302°F +/- 0.2°F – ±0.2°F
@ 40°C +/- 0.1°C – ±0.1°C
@ 93.3°C +/- 0.2°C – ±0.2°C
@ 150°C +/- 0.1°C – ±0.1°C
Heat Up Time (from Ambient)
@ 105°F / 40.5°C 42 min
@ 200°F / 93.3°C 94 min
@ 302°F / 150°C 175 min
Cool Down Times
@ 105°F / 40.5°C 330 min
@ 200°F / 93.3°C 94 min
@ 302°F / 150°C 420 min
Vacuum Valve Side Mounted Round
Vent Valve ¼ Turn Lever, ½” diameter line
Glass Window Tempered NGI-US to ANSI Z97.1.2007<br>Interior lighting
Vacuum Gauge Reads in inches mercury or torr (Selectable)
Controller Touch Screen<br>Accurate Within 1°F<br>Independent Overtemp Failsafe
Ports (Rear) Vacuum = KF-25 Port<br>Vent = 1/2” Barb
Inert Gas Introduction Yes. Via 1/2” Vent Barb<br>15 psi max inlet pressure
Power 220V – 240V / 1ph / 10A 50/60Hz<br>Cord Included<br>NEMA 6-15R Power Outlet<br>Oven BTU Rating at 250ºF: 6980 BTUs/hr at full capacity
Agilent IDP15 Oil-Free Scroll Pump
Pump Type Oil-Free, Scroll
Pumping Speed 9 CFM
Ultimate Pressure 10 x 10-3 Torr
Power 120V / 1ph (220V available)
Intake Connection KF-25
Pump Dimensions 19.08” x 9.22” x 14.3”
Pump Weight 75 lbs
MAXTRAP -50°C/-105°C Cold Trap
Power 115V / 1ph / 3 AMP (60Hz)<br>CFC / HCFC Free Refrigerants
Cold Trap Dimensions 13.5″ W x 23.5″ D x 12.0″ H
Cold Trap Weight COLDWELL Stainless Trap 14 lbs<br>Thermo Mechanical Base 60 lbs<br>Shipping Weight 95 lbs
Included Connections 1 each 4′ KF-25 flanged vacuum rated line<br>1 each KF-25 Centering Ring<br>1 each KF-25 Clamp
